SEAL ANALYTICAL | SEGMENTED FLOW ANALYZER


Thousands of AutoAnalyzers are in daily use world-wide for the analysis of samples such as soil, water, beer, wine, chemicals and tobacco. Their success is due to their design:

Flexible
The AutoAnalyzer is a modular system. A single-parameter analyzer can be expanded later to analyse multiple parameters simultaneously, or different samples and parameters can be added to the system as your analysis requirements change.

Simple
The only moving parts are the sample changer and a peristaltic pump. The system is easy to understand and operate.

Continuously developed and improved
Constantly developing new and improved methods to give faster and more accurate results. AACE software makes the system even easier to use and to interface with central computers.

In laboratories around the world the SEAL AutoAnalyzer 3, the pioneer of automated analysis, delivers fast, more accurate results, thus improving productivity and cost-effectiveness. The Seal QuAAtro provides high speed analysis to the largest laboratories.

PRODUCT DESCRIPTION

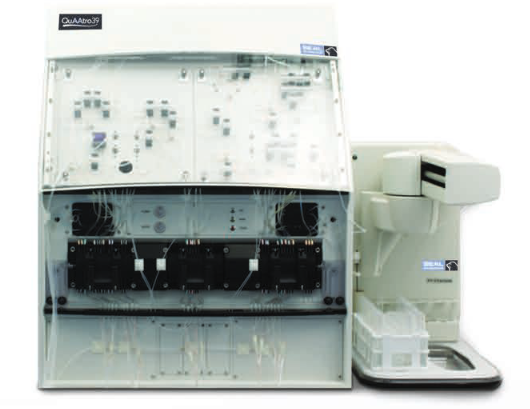

QuAAtro - Automated Segmented Flow Analyzer
Brochure Enquiry

QUAATRO - AUTOMATED SEGMENTED FLOW ANALYZER

High Performance Microflow Analyzer is the latest generation of the original world-class TechniconTM Segmented Flow Analysis (SFA) systems.

Features:

  • QuAAtro is a microflow system, the internal diameter of all glassware being 1mm.
  • Reduced reagent consumption.
  • Increased throughput, with most methods running 100 - 120 samples / hour.
  • The optimal bubble frequency for each method is programmed by silent air valves to improve flow stability.
  • More than 50 methods.
  • USEPA, AOAC and ISO standard methods.

MARKET :

  • WATER MARKET
  • TOBACCO MARKET
  • FERTILIZER MARKET
  • SOIL & PLANT MARKET
  • DETERGENT MARKET
  • MEAT MARKET
  • FOOD & BEVERAGE MARKET

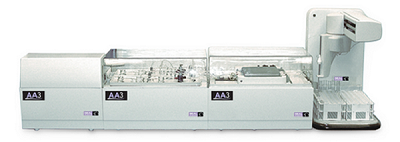

AutoAnalyzer 3 - Automated Segmented Flow Analyzer
Brochure Enquiry

AUTOANALYZER 3 - AUTOMATED SEGMENTED FLOW ANALYZER

The SEAL AutoAnalyzer 3 uses all the advantages of air-segmented flow. With reaction times up to 30 minutes, even complex procedures like distillation can be automated. Dialyzers can be built into the system for elimination of interference from dirty or colored samples.  Our proprietary in-line UV digestion procedure conforms to the ISO Standard Methods for automated measurement of Total Cyanide and Total Phosphorus.


Segmented Flow Advantages

Fully Automatic Operation - Start up to Shut down

  • Ultra Low Detection Limits
  • 40 to 100 samples per hour
  • Over 700 documented applications
  • Low reagent consumption
  • Compatible with Technicon and Bran+Luebbe AutoAnalyzer II Systems
  • Quick Method Change-over
  • Wide range: dilution of sample is rarely necessary

MARKET :

  • WATER MARKET
  • TOBACCO MARKET
  • FERTILIZER MARKET
  • SOIL & PLANT MARKET
  • DETERGENT MARKET
  • MEAT MARKET
  • FOOD & BEVERAGE MARKET
AutoAnalyzer 1 - Automated Segmented Flow Analyzer
Brochure Enquiry

AUTOANALYZER 1 - AUTOMATED SEGMENTED FLOW ANALYZER



The NEW SEAL AA1 adds another quality nutrient analyzer to the SEAL range of  SFA and Discrete instrumentation. The introduction of the AA1, continues SEAL’s reputation of high quality, reliability and commitment to new and innovative products.

How does the AA1 work?
A basic SFA system consists of an autosampler, a peristaltic pump, a chemistry manifold, a detector and data acquisition software.  Sample and reagents are pumped continuously through the chemistry manifold.   Air bubbles are introduced at regular intervals forming unique reaction segments which are mixed using glass coils. Glass is ideal, as it is inert, stays clean and enables easy visual checks.

Sleek - yet Simple
Compact in size. Plug and Start with limited tubing.  Pump, Manifold and Detector all in a bench sized Analyzer.

High Performance Digital Photometer
The AA1 digital photometer provides high sensitivity, wide dynamic ranges and low detection limits.  LED light sources are used.

Small Footprint
The NEW AA1 is light and compact and will easily fit on any standard benchtop.


New Carousel SamplerAA1 Carousel Sampler - New from SEAL Analytical
The NEW AA1 Carousel Sampler is Simple, yet Robust and EASY to use.  The AA1 Carousel Sampler is compact and light, fitting easily onto any standard benchtop!





MARKET :

  • WATER MARKET
